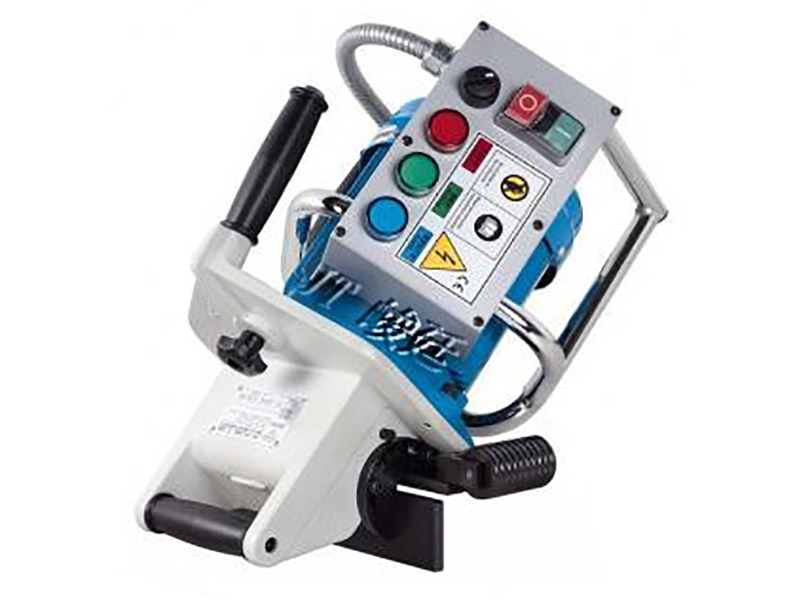

JT-250GSPortable Chamfering Machines 2HP
Enlarge
- The side cutter can be replaced quickly,based on side milling principle tip have twelve pieces.
- The machine is use to carry out chamfering operations, on any kind of ferrous materials.
- Working table can swivel angle from 15°~45°.

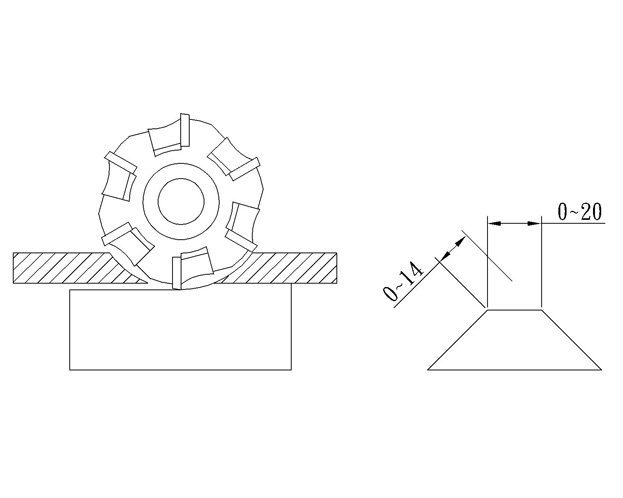

- The chamfering abillity 0~14C, 0~20mm/45.
| MODEL | JT-250GS |
|---|---|
| Tool specification | Ø61.5 x Ø22 x 12.8 Ø61.5 x Ø22 x 11.3 |
| N.W./G.W. | 24kgs/27kgs |
| Voltage | 220v~440v , 3 Phase, 50Hz/60Hz |
| Speed | 3500r.p.m. |
| Capacity | 0~14C, 0~20mm/45° |
| Bevel angle | 15°~45° |
| Moto | 2HP |
| Box size | 55cm x 42cm x 32cm |
| Blade Size | SEKN 1203 x 12 pcs |
| Track Size | 250mm x 75mm x 9mm, 250mm x 50mm x 9mm |
2PCS SIDE MILL CUTTER+12PCS BLADE
